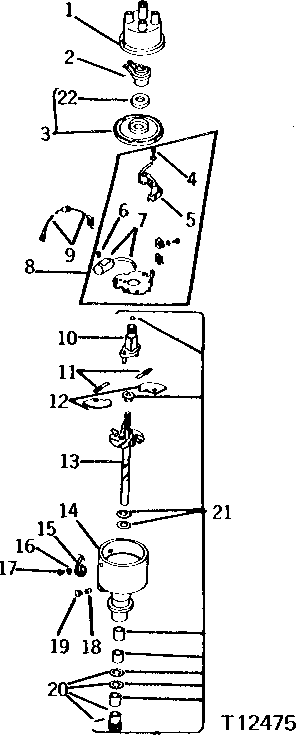

DISTRIBUTOR (PRESTOLITE NO. IBT-4101) [01G24]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT14692	1	DISTRIBUTOR CAP	-
2	AT14680	1	ROTOR	-
3	AT14682	1	COVER	-
4	21H968	1	SCREW	0.164" X 3/16"
5	AT21062	1	ELEC. CONNECTOR TERMINAL	(SUB FOR AT14685)
6	21H1132	1	SCREW	0.138" X 5/32"
7	AT14684	1	CAPACITOR	-
8	AT21719	1	PLATE	PLATE
9	AT14686	1	WIRING LEAD	(USE WITH AT14384)
9	T24526	1	WIRING LEAD	(USE WITH AT21351)
10	RE16946	1	PLATE	(SUB FOR AT14693) (NLA)
11	AT24436	1	SPRING	(SUB FOR AT14689) (USE WITH AT14384) (NLA)
11	AT21720	1	SPRING	(USE WITH AT21351) (NLA)
12	T16580	2	WEIGHT	-
13	AT21995	1	SHAFT	(SUB FOR AT14681)
14	-	1	Part 16	(ORDER AT21351 AND AT21941)
15	AT14679	2	CLAMP	-
16	12H315	2	Lock Washer	0.164"
17	21H971	2	SCREW	0.164" X 5/16"
17	21H1293	2	SCREW	0.164" X 5/16", (USE WITH AT21351)
18	-	1	Part 21	(ORDER AT25575) (NLA)
19	-	1	Part 22	(ORDER AT25575) (NLA)
20	AT21941	1	MOUNTING PARTS	DISTRIBUTOR SHAFT COUPLING, (USE WITH AT14384)
20	AT21722	1	HYDRAULIC HEAD AND ROTOR	(USE WITH AT21351) (NLA)
21	AT21721	1	GEAR	SHAFT BEARINGS, SPACERS AND WASHERS FOR METAL BASE DISTRIBUTOR
22	-	1	Part 26	(ORDER AT14682)
..	AT14384	1	IGNITION DISTRIBUTOR	(USE WITH AT14385) (SUB AT21351 AND AT21941) (PRESTOLITE NO. IBT-4101R)
..	AT21940	1	KIT	SHAFT, BEARINGS AND SPACERS, (NO LONGER AVAILABLE)
..	AT21351	1	IGNITION DISTRIBUTOR	(SUB FOR AT14384 OR AT14119) (ALSO ORDER AT21941) (PRESTOLITE NO. IBT-4104U)

DISTRIBUTOR (PRESTOLITE NO. IBT-4101) [01G24]
