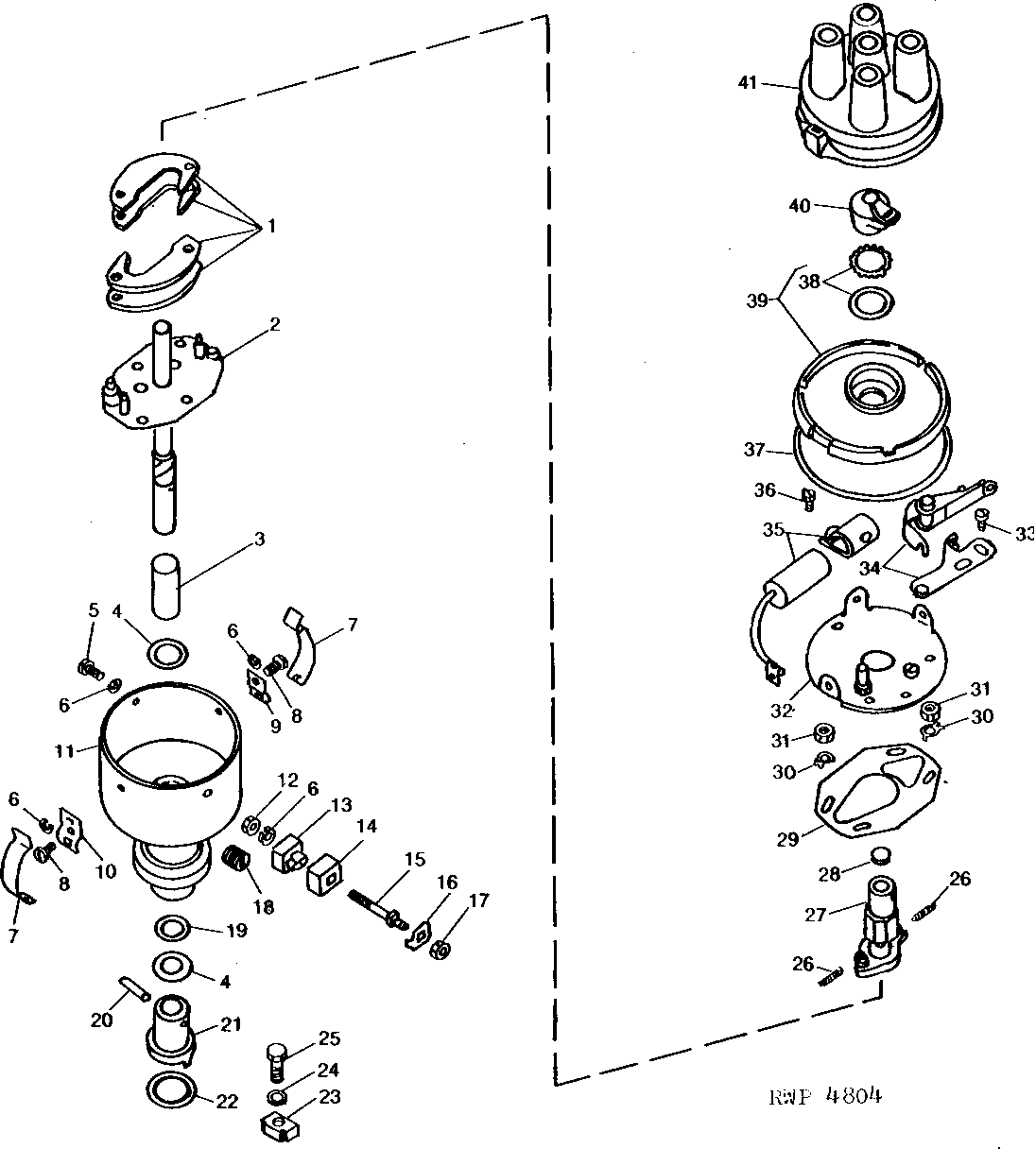

DISTRIBUTOR (DELCO-REMY NO. 112623) [01G22]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	1881371	4	WEIGHT	-
2	1923301	1	SHAFT	-
3	1909003	1	BUSHING	-
4	811912	2	WASHER	-
5	21H972	1	SCREW	0.164" X 5/16"
6	12M7084	4	Lock Washer	0.169"
7	1889967	2	CLAMP	-
8	21H996	2	SCREW	0.164" X 3/8"
9	1889999	1	SUPPORT	-
10	1847289	1	SUPPORT	-
11	1917312	1	HOUSING	-
12	14H1026	1	Nut	0.138", (SUB FOR 817363)
13	AR78929	1	KIT	IGNITION TERMINAL, (SUB FOR 1916805 OR AR80069)
14	1914142	1	BUSHING	(NLA)
15	1916806	1	STUD	(NLA)
16	12H246	1	LOCK WASHER	0.190", (SUB FOR 1909206 OR 1914144)
17	14H605	1	Nut	0.164"
18	15H558	1	Pipe Plug	1/8", (SUB FOR R11085)
19	810074	1	WASHER	0.13MM (.005")
19	T24331	1	SHIM	0.25MM (.010") (SUB FOR 810078) (NLA)
20	829421	1	DOWEL PIN	(NLA)
21	1909273	1	COUPLING	-
22	F2632R	1	GASKET	(SUB FOR M414T)
23	T12459	2	CLIP	-
24	12H303	2	Lock Washer	5/16"
25	19H1905	2	Cap Screw	5/16" X 1"
26	1904292	2	SPRING	(NLA)
27	1937455	1	CAM	(ORDER AR11162) (NLA)
28	T24319	1	WICK	(SUB FOR 819639)
29	1885557	1	PLATE	(NLA)
30	12H246	2	LOCK WASHER	0.190", (SUB FOR 1885558)
31	14H631	2	Nut	0.190"
32	1847643	1	PLATE	-
33	T19088	1	SCREW	(SUB FOR 816784)
34	AT14467	1	CONTACT	(SUB FOR 1855720) (SUB AT14469)
34	AT14469	1	BREAKER POINTS	(SUB FOR 1882965)
35	AT14468	1	CAPACITOR	(SUB FOR 1869704)
35	AT14466	1	POINT	(SUB FOR AT14465)
36	21H968	1	SCREW	0.164" X 3/16"
37	1889966	1	GASKET	-
38	1914309	1	SEAL	(SUB AT139833)
39	1900119	1	COVER	-
40	820445	1	ROTOR	-
41	811735	1	CAP	-
..	AR11162	1	IGNITION DISTRIBUTOR	(SUB FOR AT361T OR AT17366) (NLA)

DISTRIBUTOR (DELCO-REMY NO. 112623) [01G22]
