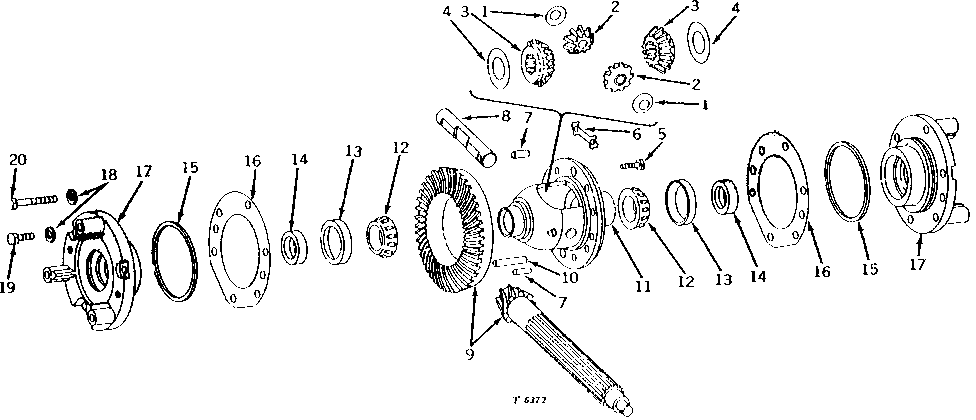

DIFFERENTIAL ASSEMBLY (TRACTOR SERIAL NO. 031001- ) [01I12]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T16886	2	THRUST WASHER	-
2	T12996	2	PINION	-
3	T18198	2	GEAR	-
4	T18199	2	THRUST WASHER	-
5	M4062T	10	CAP SCREW	-
6	M254T	5	LOCK	(SUB FOR AM668T)
7	M4339T	2	DOWEL PIN	-
8	T18197	1	PINION SHAFT	-
9	AT16748	1	GEAR	(A) (6 AND 32 TEETH) (MATCHED SET) (MARKED T18345 AND T18556)
9	AT16794	1	GEAR	(8 AND 37 TEETH) (RU, RUS) (MATCHED SET) (MARKED T18608 AND T18260) (NO LONGER AVAILABLE)
9	AT17123	1	SHAFT	(7 AND 37 TEETH) (RC) (MATCHED SET) (MARKED T18874 AND T18873) (NO LONGER AVAILABLE)
10	34H385	1	Spring Pin	1/4" X 1-3/4"
11	T18196	1	HOUSING	(NO LONGER AVAILABLE)
12	JD8144	2	BEARING CONE	-
13	JD8205	2	Bearing Cup	-
14	T22069	2	SEAL	(SUB FOR AM253T)
15	C11884	2	O-Ring	(A) (SUB FOR T17102)
16	M167T	1	SHIM	(A) 0.05MM (0.002")
16	T18202	1	SHIM	(B) 0.05MM (0.002")
16	M168T	1	SHIM	(A) 0.13MM (0.005")
16	T18203	1	SHIM	(B) 0.13MM (0.005") (NO LONGER AVAILABLE)
16	M169T	1	SHIM	(A) 0.25MM (0.010")
16	T18204	1	SHIM	(B) 0.25MM (0.010")
17	T18194	2	BEARING HOUSING W/O BEARING	(A) (NO LONGER AVAILABLE)
17	T18201	2	BEARING HOUSING W/O BEARING	(B) (NO LONGER AVAILABLE)
18	12H304	12	Lock Washer	3/8"
19	19H1944	6	Cap Screw	(A) 3/8" X 2-3/4"
20	19H2552	6	CAP SCREW	(A) 3/8" X 1-1/8"
20	19H2552	12	CAP SCREW	(B) 3/8" X 1-1/8"
