DIFFERENTIAL ASSEMBLY (TRACTOR SERIAL NO. 010001-031000) [01I11]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	M164T	2	THRUST WASHER	-
2	M163T	2	GEAR	(SUB FOR AM664T)
3	M1682T	2	GEAR	(NLA)
4	M1948T	2	THRUST WASHER	-
5	M4062T	10	CAP SCREW	-
6	M254T	5	LOCK	(SUB FOR AM668T)
7	M4339T	2	DOWEL PIN	-
8	M165T	1	PINION SHAFT	-
9	AT16608	1	GEAR	(7 AND 32 TEETH) (OR, RS, RU, UT) (MATCHED SET) (SUB FOR AM3912T) (MARKED T18450 AND T18451)
9	AT16609	1	GEAR	(6 AND 32 TEETH) (RU) (MATCHED SET) (MARKED T18345 AND T18344)
10	25H100	1	GROOVE PIN	1/4" X 2"
11	AT10444	1	CASE	-
12	JD8144	2	BEARING CONE	-
13	JD8205	2	Bearing Cup	-
14	T22069	2	SEAL	(SUB FOR AM253T)
15	M808T	1	SHIM	0.05MM (0.002")
15	M809T	1	Shim	0.13MM (0.005")
16	M2165T	2	GASKET	(A)
17	M1791T	2	BEARING HOUSING W/O BEARING	(A) (NO LONGER AVAILABLE)
17	M1711T	2	BEARING HOUSING W/O BEARING	(RU)
18	12H304	12	Lock Washer	3/8"
19	19H1944	6	Cap Screw	(A) 3/8" X 2-3/4"
20	19H2552	6	CAP SCREW	(A) 3/8" X 1-1/8"
20	19H2552	12	CAP SCREW	3/8" X 1-1/8", (RU)

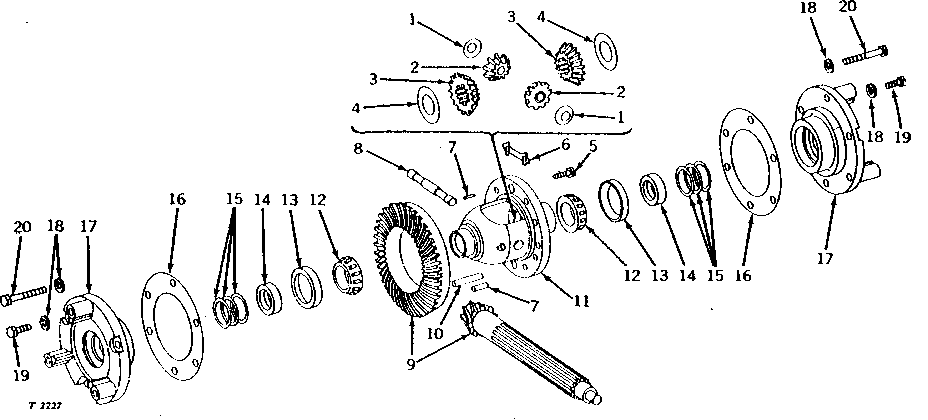

DIFFERENTIAL ASSEMBLY (TRACTOR SERIAL NO. 010001-031000) [01I11]
