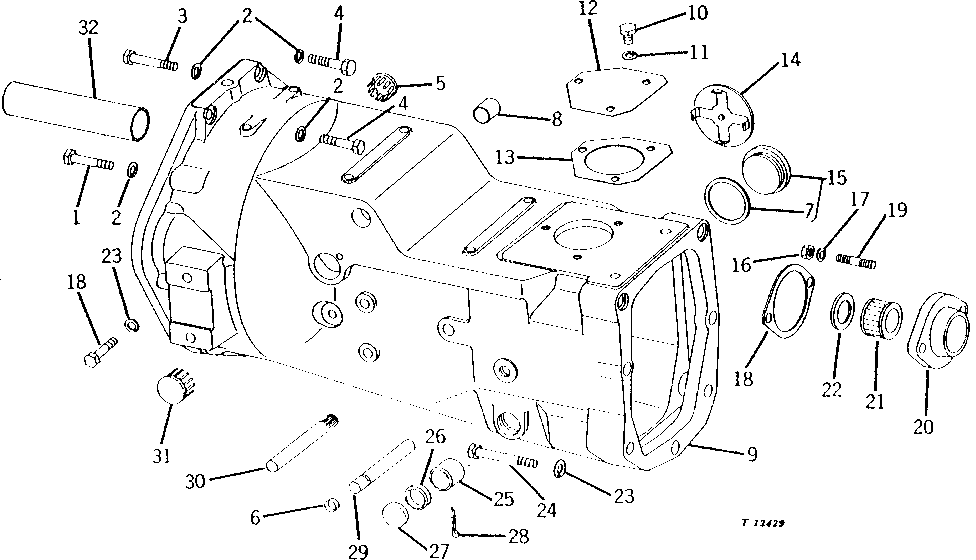

CENTER FRAME ASSEMBLY (TRACTOR SERIAL NO. 042001- ) [01H17]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H2644	2	Cap Screw	1/2" X 2-1/2"
2	12H301	6	Lock Washer	1/2"
3	19H1974	2	Cap Screw	1/2" X 2-3/4"
4	19H1990	2	Cap Screw	1/2" X 2-1/4"
5	T19408	1	Plug	-
6	T12083	1	Plug	(USED WITH SINGLE 540-RPM PTO OR LESS PTO)
7	M2133T	1	GASKET	-
8	M3581T	2	BUSHING	-
9	AT17482	1	FRAME	(MARKED T19170) (NO LONGER AVAILABLE)
10	19H1936	3	Cap Screw	(A) 3/8" X 3/4"
11	12H304	3	Lock Washer	(A) 3/8"
12	T19341	1	COVER	(A) (NO LONGER AVAILABLE)
13	T19342	1	GASKET	(A) (NO LONGER AVAILABLE)
14	AT13741	1	COVER	-
15	AM1935T	1	FITTING PLUG	-
16	14H807	2	Nut	7/16"
17	12H293	2	Lock Washer	7/16"
18	T19204	1	GASKET	-
19	M1202T	1	STUD	-
20	T19202	1	BEARING HOUSING W/O BEARING	-
21	JD8823	1	Needle Bearing	-
22	AT18555	1	SEAL	(SUB FOR AT14924)
23	12H294	13	Lock Washer	5/8"
24	19H2641	2	Cap Screw	5/8" X 3-1/4"
25	M3581T	1	BUSHING	(B)
26	AR389R	1	Seal	(B)
27	T19212	1	CAP	(USED WITH SINGLE 540 RPM PTO OR LESS PTO) (NO LONGER AVAILABLE)
28	11M7021	1	Cotter Pin	0.157" X 0.984"
29	T19206	1	PIN FASTENER	(B)
30	T19306	1	DOWEL PIN	(NO LONGER AVAILABLE)
31	T19216	1	Plug	-
32	T14516	1	BUSHING	(NO LONGER AVAILABLE)

CENTER FRAME ASSEMBLY (TRACTOR SERIAL NO. 042001- ) [01H17]
