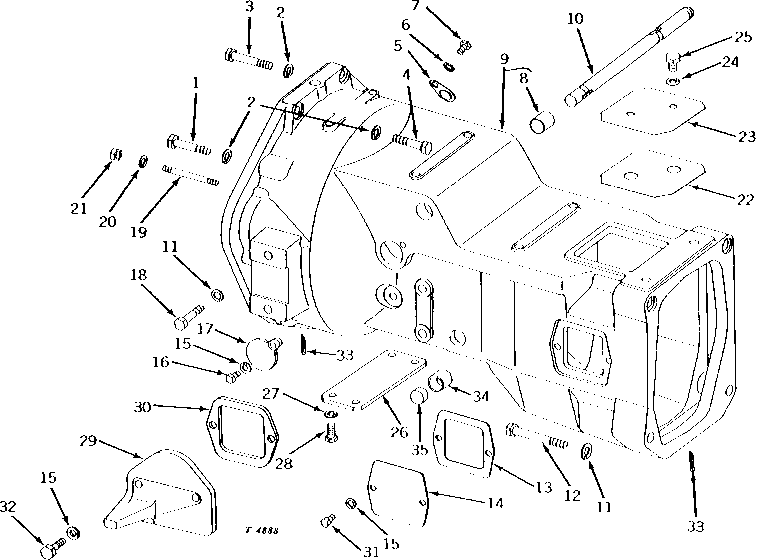

CENTER FRAME ASSEMBLY (TRACTOR SERIAL NO. 010001-042000) [01H15]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H2644	2	Cap Screw	1/2" X 2-1/2"
2	12H301	6	Lock Washer	1/2"
3	19H1974	2	Cap Screw	1/2" X 2-3/4"
4	19H1990	2	Cap Screw	1/2" X 2-1/4"
5	L689T	1	COVER	-
6	12H302	1	Lock Washer	1/4"
7	21H1144	1	SCREW	1/4" X 1/2"
8	M3581T	2	BUSHING	-
9	AT15488	1	FRAME	(SUB FOR AT13538, AT15295 AND AT15373) (MARKED T17212) (NO LONGER AVAILABLE)
10	T14518	1	SHAFT	(NO LONGER AVAILABLE)
11	12H294	11	Lock Washer	5/8"
12	19H2641	2	Cap Screw	5/8" X 3-1/4"
13	T14532	1	GASKET	(OR, RS, UT) (NO LONGER AVAILABLE)
14	T14531	1	COVER	(OR, RS, UT) (NO LONGER AVAILABLE)
15	12H303	3	Lock Washer	5/16"
16	19H1813	1	CAP SCREW	5/16" X 5/8"
17	M4212T	1	COVER	-
18	19H1833	9	Cap Screw	5/8" X 1-1/4"
19	R20132	2	STUD	(SUB FOR T452T)
20	12H304	2	Lock Washer	3/8"
21	14H1076	2	Nut	3/8"
22	T15518	1	GASKET	(A) (NO LONGER AVAILABLE)
23	T15517	1	COVER	(A) (NO LONGER AVAILABLE)
24	12H303	2	Lock Washer	(A) 5/16"
25	19H2020	2	Cap Screw	(A) 5/16" X 1/2"
26	T15588	1	COVER	(B)
27	12H304	4	Lock Washer	(B) 3/8"
28	19H1936	4	Cap Screw	(B) 3/8" X 3/4"
29	T15946	1	STOP	(RC, RU, RUS) (NO LONGER AVAILABLE)
30	T15947	1	GASKET	(RC, RU, RUS)
31	19H1813	2	CAP SCREW	5/16" X 5/8", (3 USED RS, UT)
32	19H1849	2	Cap Screw	5/16" X 1-1/4", (RC, RU, RUS)
33	11M7021	2	Cotter Pin	0.157" X 0.984"
33	11M7021	2	Cotter Pin	0.157" X 0.984"
34	M1640T	2	BUSHING	(540-1000 RPM DUAL SPEED PTO)
35	T15562	2	CAP	(SINGLE 540 RPM PTO OR WITH PTO) (NO LONGER AVAILABLE)

CENTER FRAME ASSEMBLY (TRACTOR SERIAL NO. 010001-042000) [01H15]
