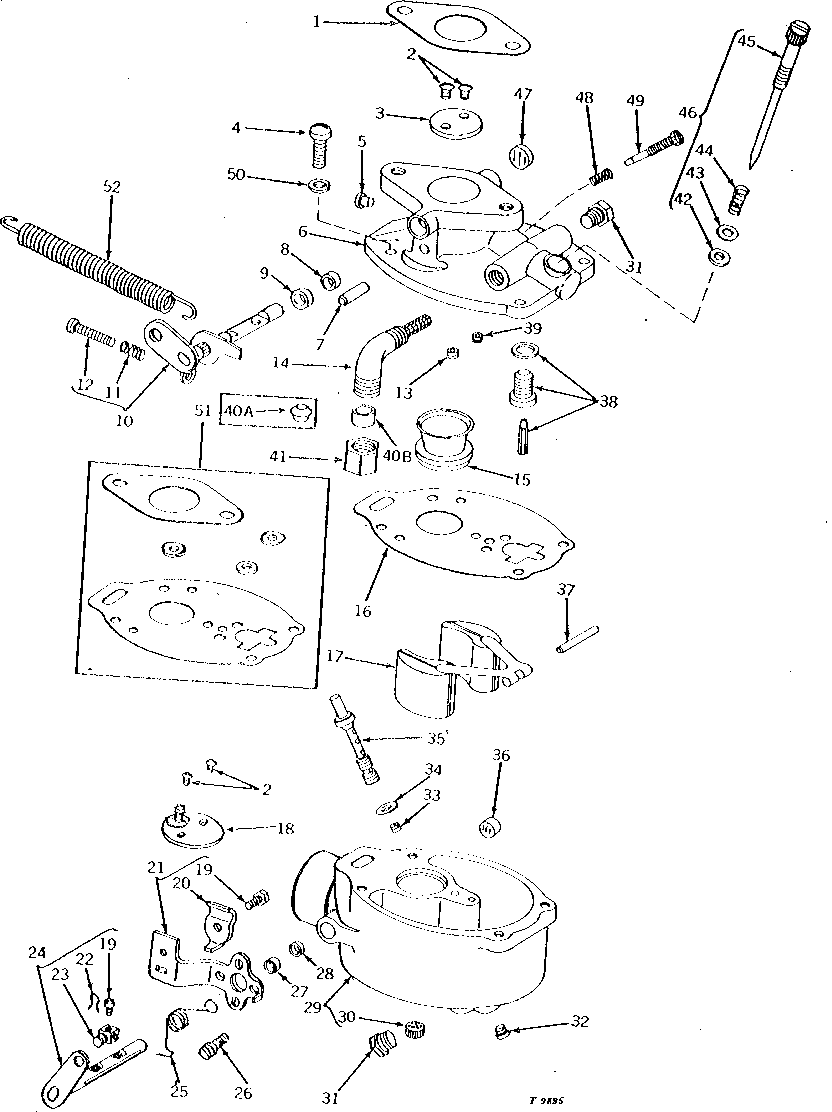

CARBURETOR (MARVEL SCHEBLER NO. TSX-860 AND TSX-809) [01D17]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T268T	1	GASKET	-
2	H22547	4	SCREW	-
3	T16559	1	FAN	-
4	15-443	4	SCREW	(NO LONGER AVAILABLE)
5	B17682	1	PLUG	(SUB FOR 80-171)
6	AT14654	1	HOUSING	(NO LONGER AVAILABLE)
6	AT16965	1	HOUSING	(SUB AR62245)
7	34H387	1	Spring Pin	3/16" X 3/4", (SUB FOR R10193 OR 34H194)
8	R10186	1	SEAL	-
9	55-231	1	Retainer	-
10	AT14649	1	SHAFT	-
11	R10104	1	SPRING	-
12	21H977	1	SCREW	0.164" X 3/4"
13	H22565	1	RESTRICTOR	-
14	67-523	1	STRAINER	-
15	T16564	1	VENTURI	-
16	16-80	1	GASKET	-
17	30-600	1	FLOAT	-
18	AT15066	1	FAN	(SUB FOR AT14640)
18	AT16963	1	FAN	-
19	21H971	2	SCREW	0.164" X 5/16"
20	R10188	1	CLIP	-
21	AR30435	1	BRACKET	-
22	R10185	1	Spring Locking Pin	-
23	28-49	1	Swivel	-
24	AT14651	1	SHAFT	-
25	T16562	1	SPRING	(NO LONGER AVAILABLE)
26	AR10303	1	SCREW	(SUB 12H360 AND 21H1299)
27	55-243	1	RETAINER	-
28	44-39	1	PACKING	-
29	AT15540	1	HOUSING	(SUB FOR AT14648) (SUB AR62242)
30	95-78	1	STRAINER	-
31	R10160	1	PIPE PLUG	-
32	15-409	1	PLUG	(NO LONGER AVAILABLE)
33	T16565	1	NOZZLE	-
34	16-449	1	GASKET	(NO LONGER AVAILABLE)
35	AT16964	1	NOZZLE	-
36	R10149	1	PLUG	(NO LONGER AVAILABLE)
37	32-27	1	SHAFT	(NO LONGER AVAILABLE)
38	233-536	1	VALVE	(NO LONGER AVAILABLE)
38	AT25491	1	VALVE	(SUB FOR AT16961)
39	49-207	1	NOZZLE	(NO LONGER AVAILABLE)
41	L588T	1	NUT	-
42	T16561	1	GASKET	(NO LONGER AVAILABLE)
43	R10187	1	SHIM	-
44	T16563	1	SPRING	(NO LONGER AVAILABLE)
45	AT14653	1	NEEDLE	(NO LONGER AVAILABLE)
46	AT14652	1	NEEDLE	-
46	AT16962	1	NEEDLE	-
47	R10198	1	PLUG	-
48	24-340	1	SPRING	-
49	43-33	1	NEEDLE	-
50	12M7084	4	Lock Washer	-
51	AR56085	1	GASKET KIT	(SUB FOR AT14650)
52	M2260T	1	SPRING	-
..	AT14655	1	KIT	CARBURETOR REPAIR, (SUB AR52590)
..	AT16966	1	KIT	CARBURETOR REPAIR, (SUB AR52590)
..	AT21425	1	KIT	THROTTLE CAM CONVERSION FOR COLD WEATHER STARTING
..	AR62242	1	CARBURETOR	(SUB FOR AT12743 OR AT16332) (SUB RE19892)
40A	L587T	1	SLEEVE	-
40B	T18333	1	BUSHING	-
