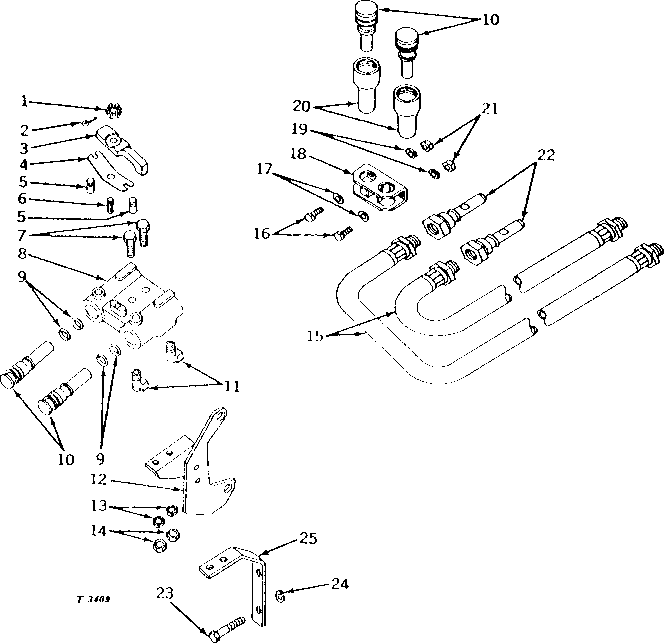

BREAKAWAY COUPLING AND COUPLING BRACKET (TRACTOR SERIAL NO. 010001-042000) [02D19]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14H511	1	NUT	5/16"
2	11M7077	1	Cotter Pin	0.063" X 0.984"
3	A3611R	1	CAM	-
4	A3610R	1	SPRING	-
5	A3609R	2	PIN FASTENER	-
6	A3612R	1	STUD	-
7	19H1800	2	Cap Screw	3/8" X 1-1/2"
8	M1323T	1	HOUSING	(SUB FOR AM1334T) (NO LONGER AVAILABLE)
9	A3190R	4	O-Ring	-
10	M1324T	2	PLUG	(SUB FOR AM1335T)
11	M1342T	2	ELBOW FITTING	-
12	AM2841T	1	BRACKET	(A) (NO LONGER AVAILABLE)
13	12H304	2	Lock Washer	3/8"
14	14H1076	2	Nut	3/8"
15	TY3034	2	HYDRAULIC HOSE - FABRICATE	(SUB FOR AA4542R)
16	19H1936	2	Cap Screw	(A) 3/8" X 3/4"
16	19H1948	2	Cap Screw	(B) 1/4" X 3/4"
17	24M7096	2	Washer	(A) 10.500 X 18 X 1.600 MM
17	24H1287	2	Washer	(B) 9/32" X 5/8" X 0.065"
18	AA3754R	1	BRACKET	-
19	12H304	2	Lock Washer	(A) 3/8"
19	12H302	2	Lock Washer	(B) 1/4"
20	A3614R	2	EXHAUST CAP	-
21	14H1076	2	Nut	(A) 3/8"
21	14H786	2	Nut	(B) 1/4"
22	A3613R	2	COUPLING	-
23	19H1726	2	Cap Screw	(B) 3/8" X 2-1/4"
24	12H304	2	Lock Washer	(B) 3/8"
25	M3828T	1	BRACKET	(B) (NO LONGER AVAILABLE)

BREAKAWAY COUPLING AND COUPLING BRACKET (TRACTOR SERIAL NO. 010001-042000) [02D19]
