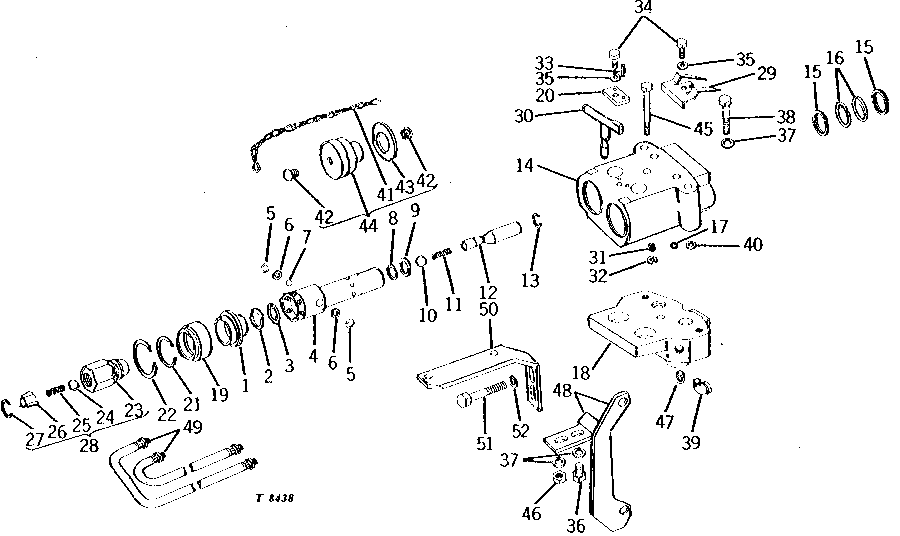

BREAKAWAY COUPLING AND BRACKET (TRACTOR SERIAL NO. 042001- ) [02D22]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R28006	2	CAP	-
2	R26485	2	BACK-UP RING	-
3	R495R	2	O-Ring	-
4	R34397	2	SOCKET OUTLET	-
5	R26484	4	Back-Up Ring	-
6	A3917R	2	O-Ring	-
7	400R	12	Ball	-
8	R375R	2	O-Ring	-
9	R26482	2	Ring	-
10	D2361R	2	Ball	-
11	R28084	2	SPRING	-
12	R34400	2	PLUG	-
13	R26483	2	SNAP RING	-
14	R34489	1	COUPLING	-
15	R26480	4	BACK-UP RING	-
16	A4730R	4	O-Ring	-
17	A4847R	2	Washer	-
18	-	1	Part 18	(ORDER T19283)
19	R34398	2	SLEEVE	-
20	R51285	1	PLATE	(SUB FOR R34402) (SUB AR75958)
21	R32356	2	SNAP RING	-
22	R34399	2	Snap Ring	-
23	R27430	2	HYD. QUICK-CONNECT COUPLER	(SUB AR93819)
24	D2361R	2	Ball	-
25	R28084	2	SPRING	-
26	R28085	2	GUIDE	(SUB AR93819)
27	R59633	2	WEAR RING	(SUB FOR R28204)
28	AR30210	2	HYDR.QUICK COUPLER PLUG	(SUB AR93819)
29	R30818	1	SPRING	-
30	AR99100	2	LEVER	(SUB FOR AR33877 OR AR82576)
31	R31890	2	Spring	-
32	R72653	2	Snap Ring	(SUB FOR M2396T)
33	34H244	2	SPRING PIN	1/8" X 9/16"
34	19H1900	2	Cap Screw	5/16" X 3/4"
35	12H303	2	Lock Washer	5/16"
36	19H1731	1	Cap Screw	3/8" X 1"
37	12H304	3	Lock Washer	3/8"
38	19H1944	2	Cap Screw	3/8" X 2-3/4"
39	M1342T	2	ELBOW FITTING	-
40	A4847R	2	Washer	-
41	AN163885	2	Link Chain	(SUB FOR A3184R OR R49193)
42	37H97	2	SCREW	0.242" X 3/4", (SUB FOR A4322R)
43	R34589	2	WASHER	-
44	AR34059	2	PLUG	-
45	19H2228	1	Cap Screw	3/8" X 4"
46	14H1076	1	Nut	3/8"
47	15H275	2	Pipe Plug	1/4"
48	AT17558	1	BRACKET	(OR, RS, UT) (NO LONGER AVAILABLE)
49	AR26407	2	Hydraulic Hose	-
50	T19284	1	COUPLING	(RC, RU, RUS) (NO LONGER AVAILABLE)
51	19H1726	2	Cap Screw	3/8" X 2-1/4", (RC, RU, RUS)
52	12H304	2	Lock Washer	3/8", (RC, RU, RUS)
