Открытый узел

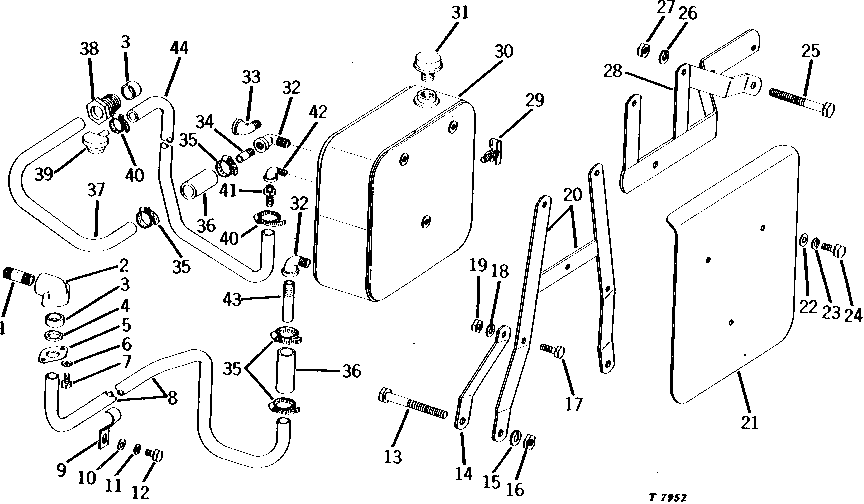

AUXILIARY HYDRAULIC RESERVOIR [02B21]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	29H658	1	Threaded Nipple	3/4" X 2"
2	T17357	1	ELBOW FITTING	(NO LONGER AVAILABLE)
3	M3246T	2	BUSHING	-
4	M3247T	1	WASHER	-
5	M3250T	1	FLANGE	-
6	12H302	2	Lock Washer	1/4"
7	19H1919	2	Cap Screw	1/4" X 5/8"
8	T19022	1	LINE	(RS) (NO LONGER AVAILABLE)
8	T19027	1	LINE	(RC, RU, RUS) (NO LONGER AVAILABLE)
8	T19032	1	LINE	(UT) (NO LONGER AVAILABLE)
9	-	1	Part 11	(SUB T23706 AND 37H57) (SUB FOR T17359)
10	24H1685	1	Washer	11/32" X 47/64" X 0.083"
11	12H303	1	Lock Washer	5/16"
12	19H1900	1	Cap Screw	5/16" X 3/4"
13	19H1926	1	Cap Screw	5/8" X 4-3/4", FRONT (RS)
13	19H1872	1	Cap Screw	5/8" X 6", REAR (RS)
14	T19019	1	BRACE	(RS) (NO LONGER AVAILABLE)
15	12H294	2	Lock Washer	5/8", (RS)
16	14H1039	8	Nut	5/8", (RS)
17	19H2552	1	CAP SCREW	3/8" X 1-1/8", (RS)
18	12H304	1	Lock Washer	3/8", (RS)
19	14H1076	1	Nut	3/8", (RS)
20	AT17280	1	BASE	(RS) (NO LONGER AVAILABLE)
21	T19020	1	SHIELD	(RS, UT) (NO LONGER AVAILABLE)
22	24H1308	3	Washer	13/32" X 1" X 0.134"
23	12H304	3	Lock Washer	3/8"
24	19H1732	3	Cap Screw	3/8" X 1-1/4", (RS, UT)
24	19H1731	3	Cap Screw	3/8" X 1", (RC, RU, RUS)
25	19H1926	1	Cap Screw	5/8" X 4-3/4", FRONT (UT)
25	19H2133	1	Cap Screw	5/8" X 4-1/2", REAR (UT)
26	24H1368	2	Washer	21/32" X 1-5/16" X 0.090"
27	14H1039	2	Nut	5/8", (UT)
28	AT17281	1	BASE	(UT) (NO LONGER AVAILABLE)
29	AT13740	1	Drain Valve	(SUB FOR AM292T)
30	AT17278	1	TANK	(NO LONGER AVAILABLE)
31	U10193	1	BREATHER	-
32	15H621	2	Elbow Fitting	90°
33	15H232	1	Elbow Fitting	45°
34	29H729	1	THREADED NIPPLE	3/4" X 1-1/2", (RS)
34	29H609	1	THREADED NIPPLE	3/4" X 3", (RC, RU, RUS, UT)
35	AR21839	4	Clamp	-
36	T19024	2	HYDRAULIC HOSE	-
37	T19023	1	LINE	(RS) (DUAL HYDRAULIC SYSTEM) (NO LONGER AVAILABLE)
37	T19026	1	LINE	(RS) (SINGLE HYDRAULIC SYSTEM) (NO LONGER AVAILABLE)
37	T19028	1	LINE	(RC, RU, RUS) (NO LONGER AVAILABLE)
37	T19033	1	LINE	(UT) (NO LONGER AVAILABLE)
38	M3249T	1	NUT	-
39	AT17279	1	PLUG	(NO LONGER AVAILABLE)
40	AR21837	2	Clamp	-
41	T19021	1	Hose Fitting	-
42	15H622	1	Elbow Fitting	90°
43	29H609	1	THREADED NIPPLE	3/4" X 3"
44	T19025	1	HYDRAULIC HOSE	(NO LONGER AVAILABLE)

AUXILIARY HYDRAULIC RESERVOIR [02B21]

Нет текстового описания
