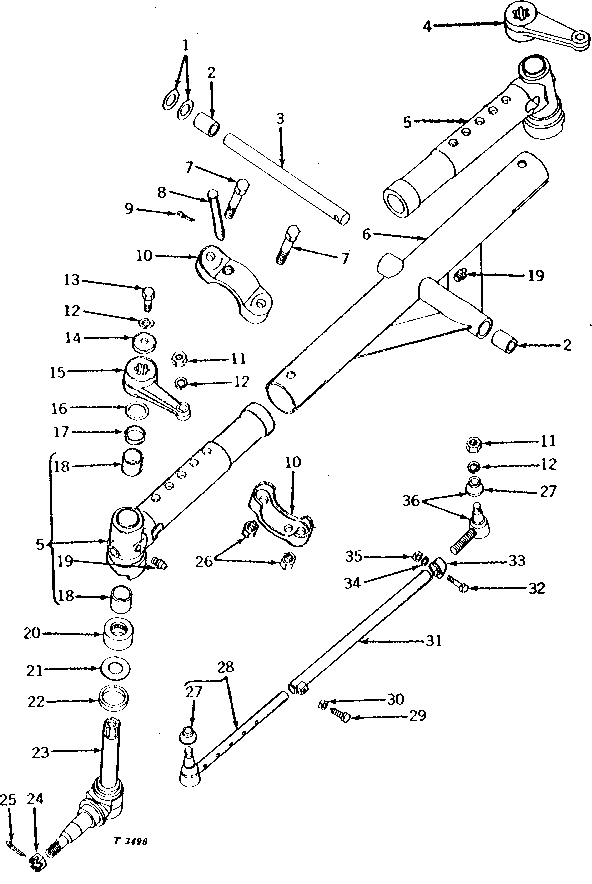

ADJUSTABLE FRONT AXLE (UTILITY AND ORCHARD) (TRACTOR SERIAL NO. 010001-042000) [02E18]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	M4142T	2	WASHER	(SUB FOR M4144T)
1	M4145T	1	SHIM	(SUB FOR M4143T)
2	M1111T	2	Bushing	-
3	M2666T	1	PIN FASTENER	-
4	M2812T	1	LEVER	-
5	AM2676T	2	END	(MARKED M2829T) (NO LONGER AVAILABLE)
6	AM3840T	1	TUBE	(NO LONGER AVAILABLE)
7	19H2610	4	CAP SCREW	5/8" X 3-1/4"
8	M1387T	2	PIN	-
9	11M7015	2	Cotter Pin	3.200 X 25 MM
10	M1460T	2	CLAMP	(SUB FOR AM1474T)
11	14H865	4	Nut	1/2"
12	12H301	6	Lock Washer	1/2"
13	19H1815	2	Cap Screw	1/2" X 1-1/4"
14	M557T	2	Washer	-
15	M2811T	1	LEVER	-
16	M1249T	1	Shim	-
16	M1250T	1	SHIM	-
17	M1518T	2	WASHER	-
18	JD8820	4	NEEDLE BEARING	-
19	JD7759	3	Lubrication Fitting	-
20	JD8407	2	THRUST BEARING	-
21	M2283T	2	WASHER	-
22	M2282T	2	WASHER	-
23	AM2163T	2	SPINDLE	(MARKED M2405T AND M2216T)
24	14H1086	2	Nut	3/4"
25	11M7030	2	Cotter Pin	0.197" X 1.575"
26	14H1083	4	Nut	5/8"
27	M648T	2	Dust Shield	-
28	AM2168T	2	SOCKET	-
29	M2561T	2	SET SCREW	-
30	14H882	2	Nut	5/16"
31	AM2167T	2	TIE ROD ASSEMBLY	-
32	L410T	2	CAP SCREW	-
33	L409T	2	Clamp	-
34	12H303	2	Lock Washer	5/16"
35	14H650	2	Nut	5/16"
36	AM496T	2	BALL JOINT	(SUB FOR AM498T)

ADJUSTABLE FRONT AXLE (UTILITY AND ORCHARD) (TRACTOR SERIAL NO. 010001-042000) [02E18]
