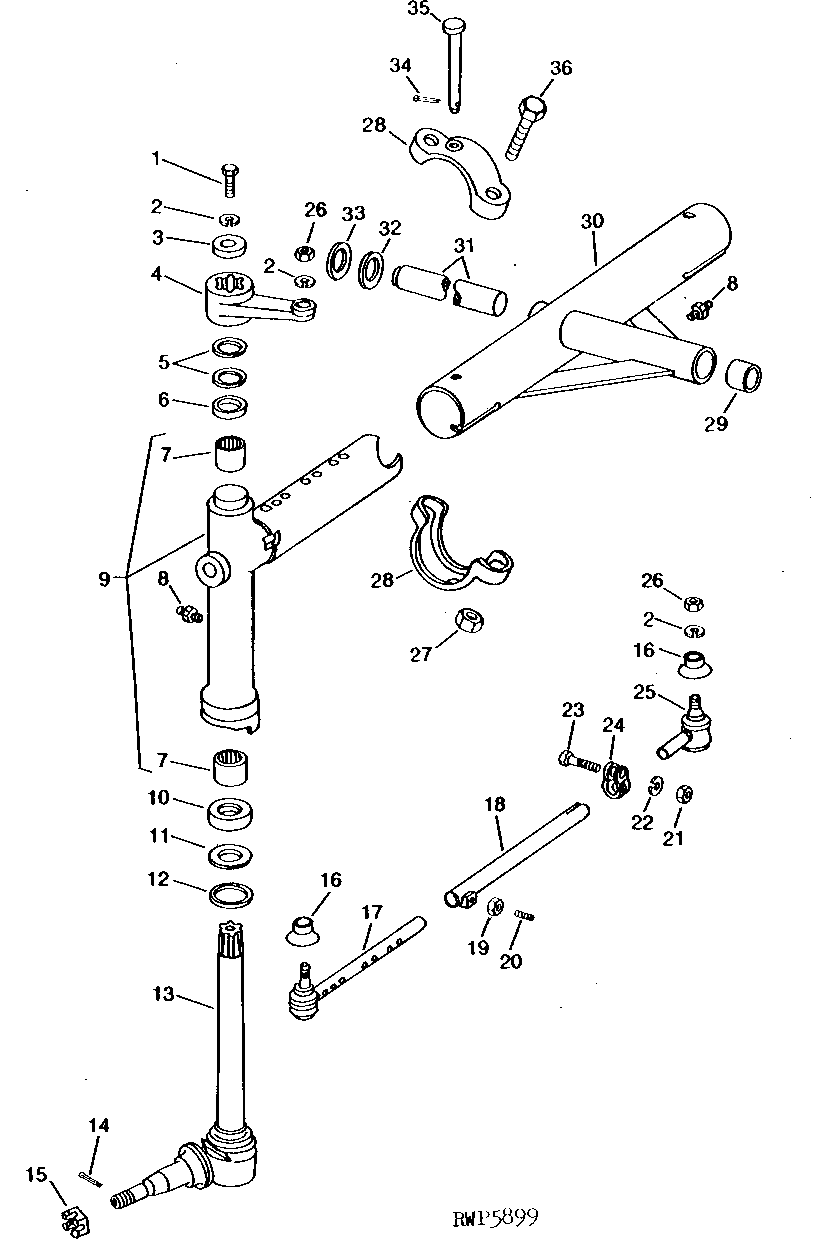

ADJUSTABLE FRONT AXLE (SINGLE ROW-CROP) (TRACTOR SERIAL NO. 010001-042000) [02E16]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H1815	2	Cap Screw	1/2" X 1-1/4"
2	12H301	6	Lock Washer	1/2"
3	M557T	2	Washer	-
4	M2811T	1	LEVER	R.H.
4	M2812T	1	LEVER	L.H.
5	M1249T	1	Shim	0.25MM (0.010")
5	M1250T	1	SHIM	0.7MM (0.027")
6	M1518T	2	WASHER	-
7	JD8820	4	NEEDLE BEARING	-
8	JD7759	3	Lubrication Fitting	-
9	AM3952T	2	AXLE KNEE	(NO LONGER AVAILABLE)
10	JD8407	2	THRUST BEARING	-
11	M2283T	2	WASHER	-
12	M2282T	2	WASHER	-
13	AM2571T	2	SPINDLE	(MARKED M2749T AND M2216T)
14	11M7030	2	Cotter Pin	0.197" X 1.575"
15	14H1086	2	Nut	3/4"
16	M648T	4	Dust Shield	-
17	AM3951T	2	SOCKET	-
18	AM2795T	2	TIE ROD ASSEMBLY	-
19	14H882	2	Nut	5/16"
20	M2561T	2	SET SCREW	-
21	14H650	2	Nut	5/16"
22	12H303	2	Lock Washer	5/16"
23	L410T	2	CAP SCREW	-
24	L409T	2	Clamp	-
25	AM496T	2	BALL JOINT	(SUB FOR AM498T)
26	14H865	4	Nut	1/2"
27	14H1083	4	Nut	5/8"
28	M1460T	4	CLAMP	(SUB FOR AM1474T)
29	M1111T	2	Bushing	-
30	AM2639T	1	TUBE	-
31	M2666T	1	PIN FASTENER	-
32	M4142T	2	WASHER	(SUB FOR M4144T)
33	M4145T	1	SHIM	(SUB FOR M4143T)
34	11M7015	2	Cotter Pin	3.200 X 25 MM
35	M1387T	2	PIN	-
36	19H2610	4	CAP SCREW	5/8" X 3-1/4"

ADJUSTABLE FRONT AXLE (SINGLE ROW-CROP) (TRACTOR SERIAL NO. 010001-042000) [02E16]

Нет текстового описания
