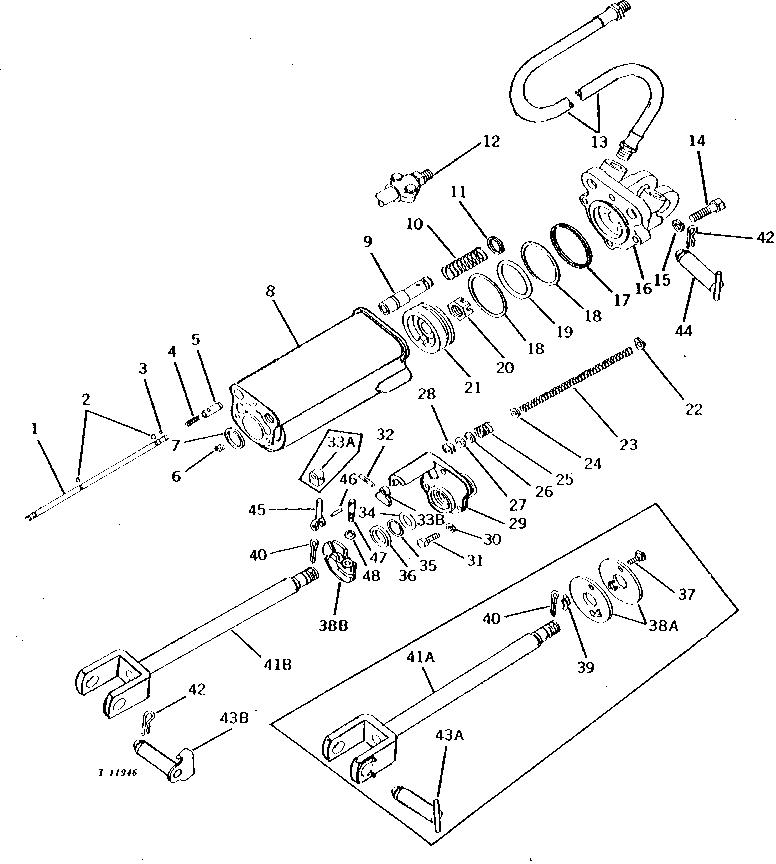

3-1/2" REMOTE CONTROL CYLINDER ASSEMBLY (TRACTOR SERIAL NO. 010001-042000) [02D17]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	A4736R	1	Rod	-
2	A4739R	2	Ring	-
3	A4742R	1	Ball	-
4	A4741R	1	Spring	-
5	A4740R	1	VALVE	(SUB FOR AA5731R)
6	15H624	1	Pipe Plug	1/2"
7	F1441R	1	Washer	-
8	F1425R	1	CYLINDER	-
9	AA5731R	1	VALVE	-
10	A4744R	1	SPRING	-
11	A4723R	2	Washer	-
12	AA4864R	1	COUPLING	(SUB A4865R)
13	TY3034	2	HYDRAULIC HOSE - FABRICATE	88", (SUB FOR AA4542R)
14	19H3182	4	CAP SCREW	1/2" X 1-7/8"
15	12H301	4	Lock Washer	1/2"
16	F1426R	1	EXHAUST CAP	-
17	F1427R	1	Washer	-
18	F1431R	2	WASHER	-
19	F1430R	1	O-Ring	-
20	R45620	1	LOCK NUT	(SUB FOR F2439R AND R41198)
21	F1428R	1	PISTON	-
22	A4738R	1	WASHER	-
23	A4737R	1	Spring	-
24	24H1301	1	Washer	13/32" X 9/16" X 0.065"
25	A4748R	1	Spring Assembly	-
26	A4747R	1	Washer	-
27	A4745R	3	Packing	-
28	A4746R	1	Adapter Fitting	-
29	F1440R	1	GUIDE	(NLA)
30	12H304	3	Lock Washer	3/8"
31	19H1731	3	Cap Screw	3/8" X 1"
32	25H760	1	Groove Pin	7/32" X 1-1/4"
34	A3606R	1	O-RING	-
35	F1432R	1	WASHER	-
36	AP19547	1	SEAL	-
37	03H1524	1	Bolt	5/16" X 1"
39	14H819	1	Wing Nut	5/16", (SUB FOR A4735R)
40	11M7083	1	Cotter Pin	0.126" X 1.969"
42	A3581R	2	Spring Locking Pin	-
44	AR47825	1	Pin Fastener	(SUB FOR AA5605R OR AA6309R)
44	AR47825	1	Pin Fastener	-
45	A5302R	1	Yoke	-
46	34H264	1	Spring Pin	5/32" X 7/8"
47	A5301R	1	Stud	-
48	R1870R	1	Washer	(SUB R57696)
33A	A5304R	1	ARM	(SUB FOR A4749R)
33B	A5304R	1	ARM	-
38A	-	2	Part 39	(SUB R27423, A5302R, 34H264, A5301R AND R57696) (SUB FOR F1435R)
38B	R27423	1	STOP	(SUB FOR F2300R)
41A	-	1	Part 43	(SUB AR71902, AR45545 AND AR47825) (SUB FOR AF1588R)
41B	AR45543	1	ROD	(SUB FOR AF2433R OR AF2331R)
43A	AR71902	1	Pin Fastener	(SUB FOR AA5605R OR AA6307R)
43B	AR71902	1	Pin Fastener	-
43C	AR71902	1	Pin Fastener	-

3-1/2" REMOTE CONTROL CYLINDER ASSEMBLY (TRACTOR SERIAL NO. 010001-042000) [02D17]
