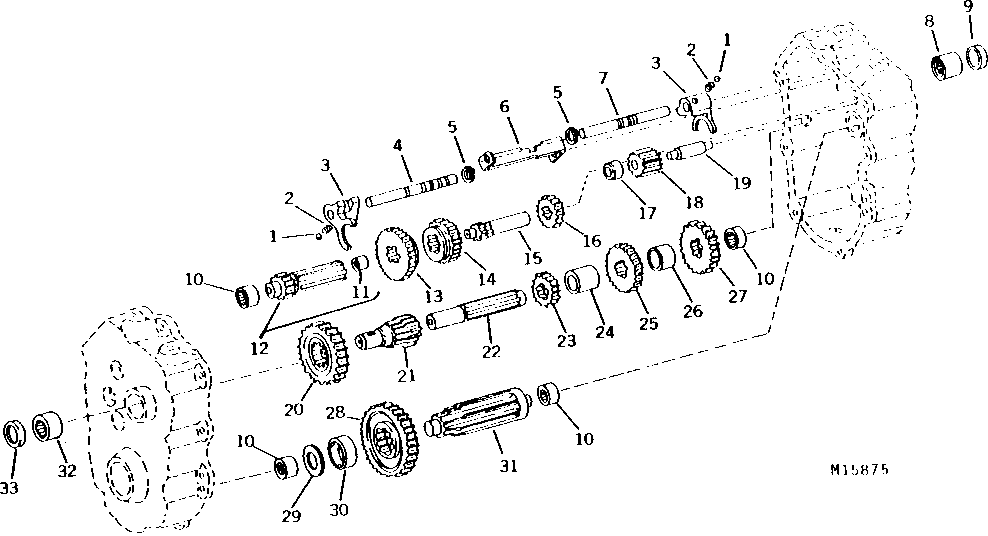

TRANSAXLE GEARS, SHIFTER RODS AND FORKS [B10]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	M40351	2	BALL	-
2	M40350	2	COMPRESSION SPRING	-
3	M11021	2	FORK	-
4	M41038	1	SHIFTER ROD	(1ST AND REVERSE SPEEDS)
5	R32507	1	Snap Ring	-
6	AM30640	1	STOP	-
7	M41037	1	SHIFTER ROD	(2ND AND 3RD SPEEDS)
8	JD9808	1	NEEDLE BEARING	-
9	M40374	1	SEAL	(31.8 MM) 1-1/4" O.D.
10	JD9807	4	NEEDLE BEARING	-
11	JD8833	1	NEEDLE BEARING	-
12	AM30293	1	SHAFT	-
13	M40358	1	GEAR	(1ST AND REVERSE SPEEDS)
14	M40359	1	GEAR	(2ND AND 3RD SPEEDS)
15	M41750	1	SHAFT	-
16	M40361	1	GEAR	-
17	M40372	1	BUSHING	(11.1 MM) 7/16" LONG (NO LONGER AVAILABLE)
18	M40373	1	IDLER	-
19	M40371	1	PIN FASTENER	-
20	M41042	1	SPUR GEAR	-
21	AM30245	1	SHAFT	INCLUDES BUSHING
22	M40366	1	SHAFT	-
23	M40365	1	GEAR	-
24	M40367	1	BUSHING	(30.2 MM) 1-3/16" LONG (NO LONGER AVAILABLE)
25	M40368	1	GEAR	-
26	M40369	1	BUSHING	(19.0 MM) 3/4" LONG
27	M40370	1	GEAR	-
28	M41044	1	SPUR GEAR	-
29	M40378	1	Washer	-
30	M40377	1	BUSHING	(15.9 MM) 5/8" LONG
31	M40375	1	SHAFT	-
32	JD8813	1	Needle Bearing	(BRAKE SHAFT)
33	M40676	1	SEAL	(34.9 MM) 1-3/8" O.D.

TRANSAXLE GEARS, SHIFTER RODS AND FORKS [B10]
