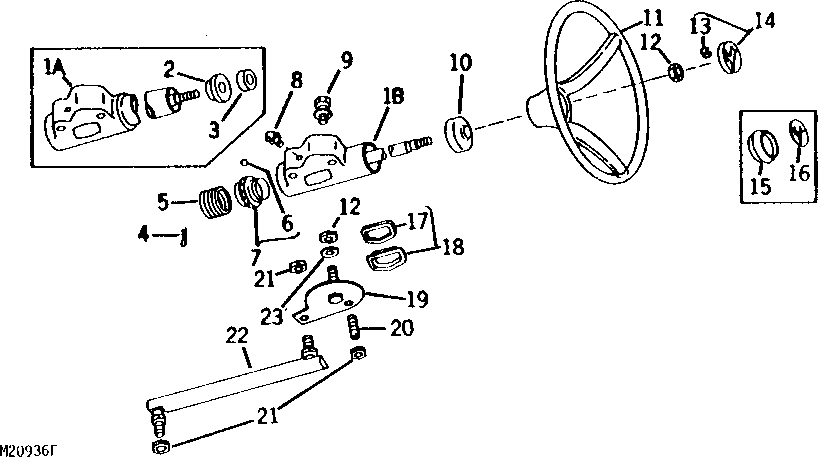

STEERING WHEEL, STEERING GEAR AND DRAG LINK [A12]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
2	M43743	1	BEARING	(A)
3	M43744	1	Bushing	(A)
4	11M7012	1	Cotter Pin	(A) (B) 3.200 X 16 MM
5	M41918	1	FITTING	(A) (B)
6	R26552	16	Ball	(A) (B) (5/16") DIA.
7	AM31924	1	KIT	(A) (B) BEARING
8	JD7846	1	Lubrication Fitting	(A) (B)
9	19H1731	3	Cap Screw	3/8" X 1"
9	12H310	3	Lock Washer	3/8"
10	M81567	1	SEAL	(B)
11	AM34368	1	STEERING WHEEL	(SUB M81485 AND AM36520)
11	M81485	1	STEERING WHEEL	-
12	14H866	3	Nut	(A) (B) 5/8"
13	M80745	2	RETAINER	(NO LONGER AVAILABLE)
14	AM36520	1	COVER	-
15	M46708	1	CAP	-
16	M46707	1	Label	-
17	M41916	1	RETAINER	(A) (B) (SUB FOR AM30980)
18	M41917	1	SEAL	(A) (B) (SUB FOR AM30980)
19	AM30878	1	LEVER	(A) (B) (NO LONGER AVAILABLE)
20	M42260	1	STUD	(A) (B)
21	14H856	3	Nut	(A) (B) 1/2"
22	AM31132	1	BALL JOINT	-
23	24H1658	1	Washer	(A) 21/32" X 1" X 0.060"
1A	AM32413	1	STEERING GEAR	(INCLUDES PARTS MARKED WITH AN (A))
1B	AM36865	1	STEERING GEAR	(NO LONGER AVAILABLE) (INCLUDES PARTS MARKED WITH A (B))

STEERING WHEEL, STEERING GEAR AND DRAG LINK [A12]

Нет текстового описания
