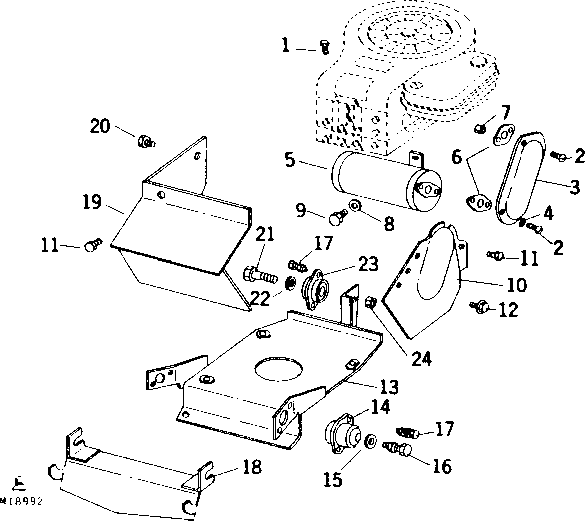

ENGINE BASE, SHROUDS AND MUFFLER [A15]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H1849	4	Cap Screw	5/16" X 1-1/4"
2	19H1919	4	Cap Screw	(200 PCS. PER PKG.) (SUB FOR M49968)
3	AM35437	1	VENT	(SUB AM36247 AND M80267)
3	AM36247	1	VENT	-
4	12H302	4	Lock Washer	1/4"
5	AM34803	1	MUFFLER	-
5	AM36457	1	MUFFLER	-
6	M97430	2	GASKET	(SUB FOR M49271)
7	M49540	1	THREADED NIPPLE	-
8	24H1287	1	Washer	9/32" X 5/8" X 0.065"
9	19H1919	1	Cap Screw	1/4" X 5/8"
10	M80267	1	SHROUD	(SUB FOR M48695)
11	19H1227	1	Cap Screw	1/4" X 1/2"
11	14H786	1	Nut	1/4"
12	37H43	3	Screw	NO. 8 X 3/8"
13	AM35531	1	BASE	(N) (INCLUDES (2) AM35692)
14	AM35692	2	ISOLATOR	-
15	24H1682	2	Washer	13/32" X 7/8" X 0.120"
16	19H1733	2	CAP SCREW	3/8" X 2-1/2"
16	14H1076	2	Nut	3/8"
17	21H1019	1	SCREW	0.190" X 1/2"
17	12H246	1	LOCK WASHER	0.190"
17	14H778	1	Nut	0.190"
18	AM35832	1	DEFLECTOR	(N)
19	AM35436	1	SHROUD	(N)
20	19H1813	2	CAP SCREW	5/16" X 5/8"
21	19H1765	1	Cap Screw	3/8" X 1-3/4"
22	24H1314	1	Washer	13/32" X 1-3/4" X 7/64"
23	M46201	1	ISOLATOR	-
24	14H1076	1	Nut	3/8"
..	AM37085	1	SPARK ARRESTING MUFFLER	(N) (ACCESSORY)

ENGINE BASE, SHROUDS AND MUFFLER [A15]
